Harnessflex AB12-M16-90 12mm M16 90° Elbow
£1.54 inc VAT - £1.28 exc VAT
Harnessflex AB12-PG09 Straight Conduit Fitting
£1.11 inc VAT - £0.93 exc VAT
Harnessflex AB12-M20 12mm M20 Straight Conduit Fitting
£1.17 inc VAT - £0.98 exc VAT
Sealed straight fitting
Straight compression type fittings incorporating fixed or swivel male threads to provide connection to knockouts and threaded entries. These fittings are designed for use with all types of unslit Harnessflex conduit, maintaining maximum conduit bore.
| Brand |
Harnessflex |
|---|---|
| GID |
7TCA298010R0044 |
| Temperature Resistance |
Standard Temperature |
Please Note - All product images are for illustration purposes only. Actual product will vary depending on the specifications of the product selected.
AB12-M20 Compatible Parts
| Part Number | Conduit Size | Seal | Capnut | Locknut |
| AB12-M20 | 8mm | RSB12-08 | CN09-08 | LNP-M20 |
| 10mm | SRN07 | CN07 | LNP-M20 | |
| 12mm | SRN07 | CN07 | LNP-M20 |
Description
Sealed straight fitting
Straight compression type fittings incorporating fixed or swivel male threads to provide connection to knockouts and threaded entries. These fittings are designed for use with all types of unslit Harnessflex conduit, maintaining maximum conduit bore.
Features
- IP67 – IP68 (2 bar for 30 minutes) SRN sealing bush protects against ingress of water and dust.
- Cap-nut retention ring ensures integrity of assembly under extreme vibration
- Available with metric, PG fixed male, NPT & PF threads.
- Includes flat seal washer providing a seal between panel / bulkhead and fitting.
- Polyamide (Nylon) 66
- Temperature Range: -40ºC to 150ºC
- Very high UV resistance
- Self extinguishing, low smoke toxicity & halogen free
Conformity
- ADR approved (NC conduits ONLY)
- CE Mark to the low voltage directive
- RoHS Compliant to 2011/65/EU
- Conforms with end of life vehicle directive (ELV) EU200/53/EC

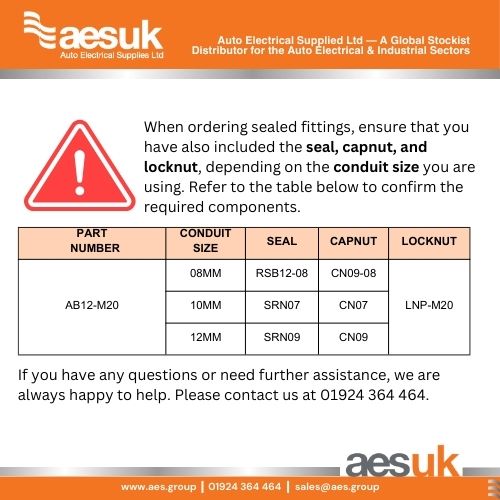

! When ordering sealed fittings, ensure that you have also included the seal, capnut, and locknut, depending on the conduit size you are using. Refer to the table below to confirm the required components:
| PART NUMBER | CONDUIT SIZE | SEAL | CAPNUT | LOCKNUT |
| AB12-M20 | 08MM | RSB12-08 | CN09-08 | LNP-M20 |
| 10MM | SRN07 | CN07 | ||
| 12MM | SRN09 | CN09 |
