AB12-M16-90 12mm M16 90° Elbow

90° Elbow Sealed Fitting

90° compression type fitting incorporating fixed or swivel male threads to provide connection to knockouts and threaded entries. These fittings are designed for use with all types of unslit Harnessflex conduit, maintaining maximum conduit bore.

Please Note - All product images are for illustration purposes only. Actual product will vary depending on the specifications of the product selected.

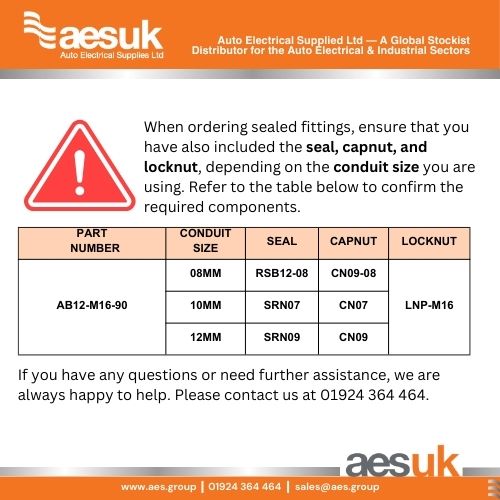

SKU: AB12-M16-90 Category:
Description

90° Elbow Sealed Fitting

90° compression type fitting incorporating fixed or swivel male threads to provide connection to knockouts and threaded entries. These fittings are designed for use with all types of unslit Harnessflex conduit, maintaining maximum conduit bore.

Features
  • IP67 – IP68 (2 bar for 30 minutes) SRN sealing bush protects against ingress of water and dust.
  • Cap-nut retention ring ensures integrity of assembly under extreme vibration
  • Available with metric, PG fixed male, NPT & PF threads.
  • Includes flat seal washer providing a seal between panel / bulkhead and fitting.
  • Polyamide (Nylon) 66
  • Temperature Range: -40ºC to 150ºC
  • Very high UV resistance
  • Self extinguishing, low smoke toxicity & halogen free
Conformity
  • ADR approved (NC conduits ONLY)
  • CE Mark to the low voltage directive
  • RoHS Compliant to 2011/65/EU
  • Conforms with end of life vehicle directive (ELV) EU200/53/EC
Additional information
Brand

Harnessflex
About Harnessflex
Harnessflex Logo
Harnessflex ® is a leading designer and manufacturer of flexible conduit systems and connector interfaces that protect critical electrical wiring in the automotive industry. Harnessflex is principally focused on chassis and engine manufacturers within bus, agricultural and heavy duty vehicle markets. A wide range of slit and unslit corrugated flexible conduits are available in a variety of materials. Used in combination with Harnessflex sealed or hinged fittings or connector interfaces they can meet the exacting needs for protection of heavy vehicle wiring harnesses.
