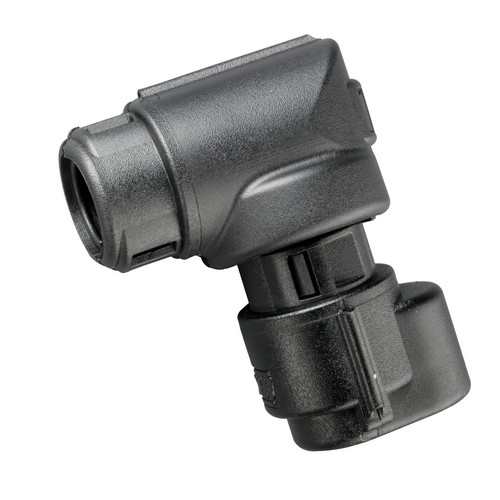

External Hinged Connector Interface
Single junction, 90° elbow interfaces providing high integrity connections between various Bosch Compact connectors and Harnessflex conduit systems. These interfaces are designed to snap together over all types of Harnessflex slit and unslit conduit, maintaining maximum conduit bore. In addition, 90° elbow versions allow the conduit to swivel 360° around the connector housing.
- One-piece external design for unrestricted bore and quick assembly with no tools.
- High pull-off strength – conduit corrugations sit tightly into joiner junctions.
- Conduit size labels – each junction indicates nominal conduit size to aid installation
- Polyamide (Nylon) 66
- IP40 rated
- Temperature Range: -40ºC to 120ºC
- Very high UV resistance
- Self extinguishing, low smoke toxicity & halogen free
- CE Mark to the low voltage directive
- RoHS Compliant to 2011/65/EU
- Conforms with end of life vehicle directive (ELV) EU200/53/EC
