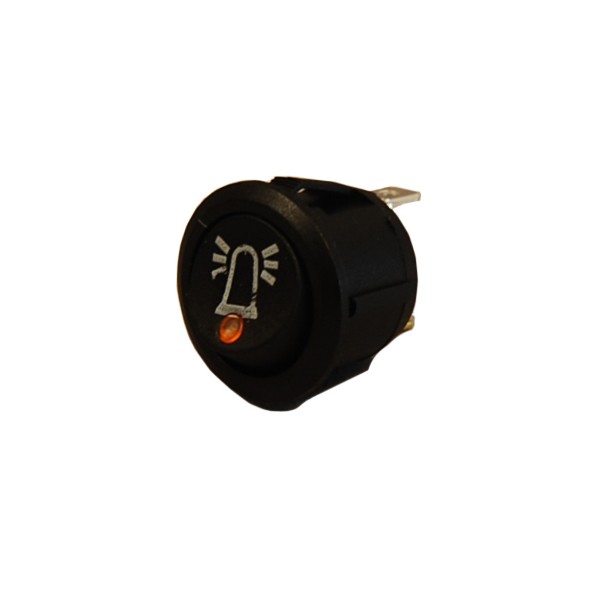

On/off, single pole switch, plastic rocker, 12/24 volt LED indicator. 4.8mm blade terminals.
Snap fits into 20mm diameter panel hole. 10 amps at 12 volts dc rating.
Terminal 1 – Supply +ve
Terminal 2 – Switched load
Terminal 3 – Ground -ve
Type: Single pole 2 position on/off rocker switch with LED indication
DC current rating @ 12 volts: 10 amps
LED current @ 12 volts: 7mA
Terminals: 4.8mm lucar blade
Temperature range: -20 to 85 C
Contact resistance: 50mΩ
Electric strength: 1500vac (1 min)
Insulation resistance: 500vdc 100MΩ
Panel cut-out: 20mm
Dimensions: Ø23 x h 26.5mm (including lever and tabs)
