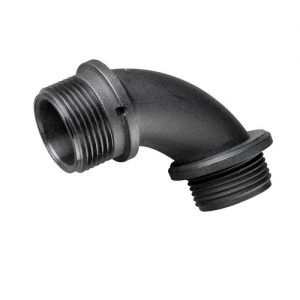

Harnessflex Fast-Fit Type C90 90° Elbow Fitting M20 for NC16 IP68/69 - HTS16/M20/C90
£8.74 inc VAT - £7.28 exc VAT
Harnessflex Fast-Fit Type C90 90° Elbow Fitting M25 for NC28 IP68/69 - HTS28/M25/C90
£10.61 inc VAT - £8.84 exc VAT
Harnessflex Fast-Fit Type C90 90° Elbow Fitting M20 for NC20 IP68/69 – HTS20/M20/C90
£8.74 inc VAT - £7.28 exc VAT
Harnessflex Fast-Fit Type C90 90° Elbow waterproof conduit fitting is a unique and innovative solution for providing maximum cable protection with effortless installation when interfacing unsplit conduit with a bulkhead or other flat surface. Simply push and rotate the conduit firmly into the fitting and connect to a bulkhead via the male thread and nut.
Compatible with all Harnessflex NC Unsplit Conduits.
- One piece design with integrated conduit and thread sealing
- Provides continuation of cable protection between conduit and cable entry points
- High level of mechanical protection and highest degree of ingress protection against solids and liquids
- External male thread for insertion into metric threaded entries or knockout holes
- Conduit and thread size indicators moulded-in for reference
Please Note - All product images are for illustration purposes only. Actual product will vary depending on the specifications of the product selected.
Description
Harnessflex® Fast-Fit uses a sophisticated moulding process to mould an internal conduit seal and a face seal washer. This makes installation times very fast, and extremely reliable, because the seals cannot be left out. The conduit system also benefits from the highest IP rating possible.
Until now, manufacturers have produced fittings and seals separately, and assembled them together, or had the customer assemble them. This increases assembly time and introduces the possibility for errors. With the new Fast-Fit range this is a thing of the past. Combining an over-moulded elastomer into the body of the fitting has enabled a one-piece design, sealing around both the conduit and against the mounting surface. This provides quicker and easier installation compared with previous fittings whilst still providing high levels of waterproofing and mechanical protection, and minimising assembly errors
For simple, safe removal use a Harnessflex Fast-Fit Removal Tool.
Key features:
- Nylon 66 body
- Lighter in weight
- Quicker to install (cut & assemble fittings)
- Wide variety of sizes
- Better fatigue life
- Return to shape
- IP66-68 Rated
- Secure Conduit Chip Design
- Lock nuts Included
Additional information
| Brand |
Harnessflex |
|---|---|
| GID |
7TCA298120R0011 |
| Temperature Resistance |
Standard Temperature |
About Harnessflex
Harnessflex ® is a leading designer and manufacturer of flexible conduit systems and connector interfaces that protect critical electrical wiring in the automotive industry.
Harnessflex is principally focused on chassis and engine manufacturers within bus, agricultural and heavy duty vehicle markets. A wide range of slit and unslit corrugated flexible conduits are available in a variety of materials. Used in combination with Harnessflex sealed or hinged fittings or connector interfaces they can meet the exacting needs for protection of heavy vehicle wiring harnesses.
