Home Lighting Headlights Hella 1FA 358 176-801 LED Headlight Black Magic Cube Kit 2.7 Inches 12/24 V
Hella 1FA 358 176-811 LED Headlight Cube Kit 3.2 Inch 12/24 V Mounting Cable 500 mm Connector German Plug Set £95.38 inc VAT - £79.48 exc VAT
Back to products
Hella 1FA 358 176-821 LED Headlight Black Magic Cube Kit 3.2 Inch 12/24 V Mounting Cable 500 mm Connector German Plug Set £95.38 inc VAT - £79.48 exc VAT
Hella

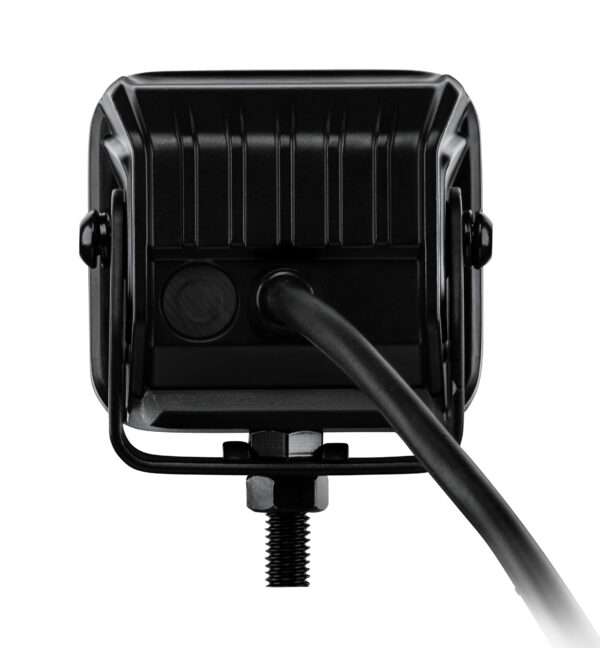

Hella 1FA 358 176-801 LED Headlight Black Magic Cube Kit 2.7 Inches 12/24 V

£76.64 inc VAT - £63.87 exc VAT

HELLA‘s Black Magic Cubes are available in 2 sizes, 2.7 and 3.2. Distinguished by the full blackout appearance and sleek design this light stands out from the crowd.

Please Note - All product images are for illustration purposes only. Actual product will vary depending on the specifications of the product selected.

— OR —

Add to quote
This product is already in quote request list.
Browse the list
SKU: ‎1FA 358 176-801 Category: Headlights
Share:
  • Description
  • Additional information
  • Reviews (0)
Description

HELLA‘s Black Magic Cubes are available in 2 sizes, 2.7 and 3.2. Distinguished by the full blackout appearance and sleek design this light stands out from the crowd.

HELLA Black Magic Cubes received the highest dust and water proof rating in the industry. They come in kits of 2 lights including a wiring harness with DT connector, switch, connector and relays making them easy to install. The 3.2? is available in Flood or Spot light versions and can be mounted either upright or pendant or integrated into the body work or bumper. HELLA‘s Black Magic Cubes are ready to brighten up your next off-road adventure.

Ideal for:
• Off-Road Driving Only

Features:
• LED high-beam cubes
• Full blackout appearance including black brackets
• Sleek design eliminates dust and dirt from being lodged in edges
• Each kit includes the wiring harness with DT connector, switch, connector and relays (easy to install)
• Compact design for universal installation

Specifications:
• 4 High intensity LEDs

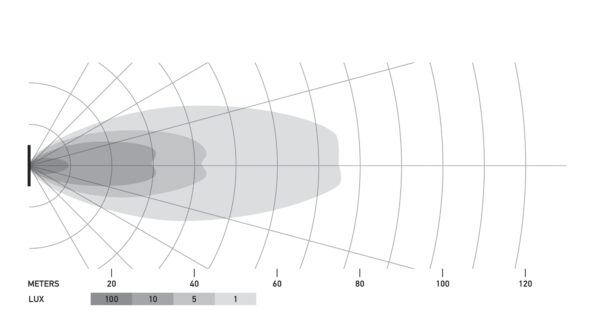

• Light function: Flood
• Die-cast aluminum housing
• Aluminum, black stainless steel mounting bracket
• Measured lumen: 1400 lm
• Multivolt 10-30V DC
• Current consumption: 1.8 A (12V) / 0.9 A (24 V)
• Connection: 1.64 ft (500 mm) cable with DT connector + short adapter harness
• 20 W
• Protection class: IP 68, IP 69K
• EMC protection: ECE-R10
• Colour temperature: 5700 Kelvin
• Weight: 350 g
• Sold as kit

Dimensions:
• 2.7? W x 2.8? H x 2.4? D / 70 x 72 x 60 mm

Technology:
• LED

Mounting:
• Upright / Pendant

Kit Lamp includes:
• (2) LED spotlights, (1) relay, (1) switch and
mounting instructions, (1) wiring harness with DT connector
