Home Lighting Light Bars  LED Light Bars Hella 1FJ 358 176-401 Black Magic LED Double Light Bar Kit 21.5in 12V 24V 200W
Hella 1FJ 358 176-331 Black Magic LED Slim Light Bar Kit 50in 12V 24V 270W £193.95 inc VAT - £161.63 exc VAT
Back to products
Hella 1FB 358 176-201 Black Magic LED Mini Light Bar Kit 6.2in 12V 24V 30W £43.30 inc VAT - £36.08 exc VAT
Hella

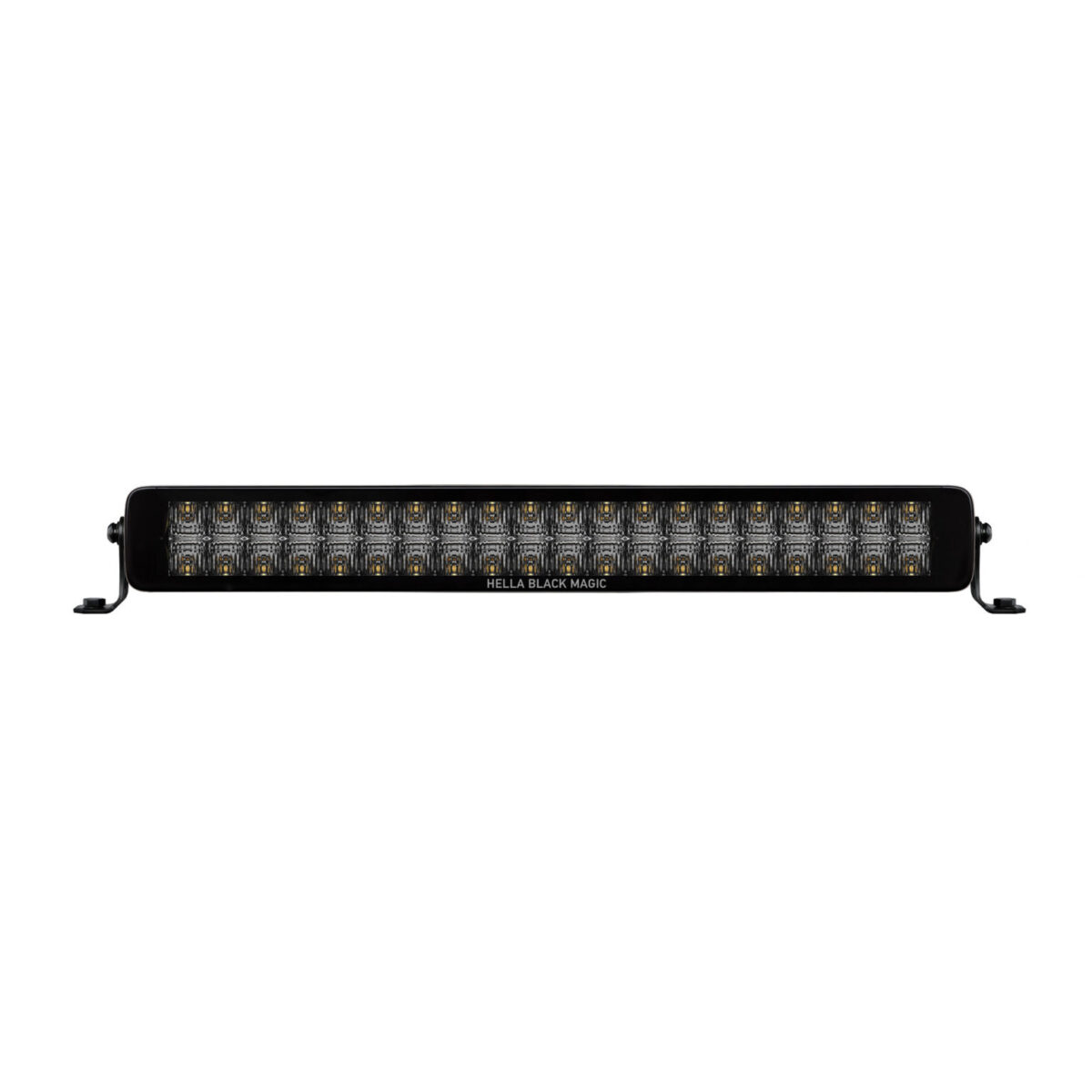

Hella 1FJ 358 176-401 Black Magic LED Double Light Bar Kit 21.5in 12V 24V 200W

£150.34 inc VAT - £125.28 exc VAT

The new HELLA Black Magic LED Series Lightbars offer driving beams with powerful light output up to 15,000 lumen, ideal for off-road situations where you need the most.

Please Note - All product images are for illustration purposes only. Actual product will vary depending on the specifications of the product selected.

— OR —

Add to quote
This product is already in quote request list.
Browse the list
SKU: 1FJ 358 176-401 Categories: LED Light Bars, Light Bars , Lighting
Share:
  • Description
  • Additional information
  • Reviews (0)
Description

The new HELLA Black Magic LED Series Lightbars offer driving beams with powerful light output up to 15,000 lumen, ideal for off-road situations where you need the most. They have a recognizable and attractive full blackout appearance with a slim and edgeless design. Typical applications would be installations as Hood, Bumper, Ground Bumper and Roof Lightbars. The product scored the highest dust / waterproof rating in the industry and edgeless design prevents dust deposits from settling along the edges.

The extra long 2 meter cable allows easy mounting on your vehicle. The new Black Magic LED Series Lightbars have an integrated thermal sensor that adapts to the ambient temperature, which not only prevents overheating or LED failure, but also increases light output when the ambient temperature is low. This new feature now provides the driver with optimum lighting for all off-road conditions. In this way the user is given the optimum light under all conditions.

Ideal for:
• Off-Road Driving Only

Features:
• LED high-beam double lightbar
• Full blackout appearance including black brackets
• Sleek design eliminates dust and dirt from being lodged in edges
• Temperature Control System
• Intense light output

Specifications:
• 40 High intensity LEDs
• Light function: Spot (Off-road only)
• Die-cast aluminum housing
• Aluminum, black stainless steel mounting bracket
• Measured lumen: 11000 lm
• Multivolt 10-30V DC
• Current consumption: 6.7-14.6 A (12V) / 3.5-7.2 A (24 V)
• Connection: 6.5 ft (2,000 mm) cable with open ends
• 200 W
• Protection class: IP 68, IP 69K
• EMC protection: ECE-R10
• Color temperature: 5700 Kelvin
• Weight: 2420 g
• Sold Individually

Dimensions:
• 23? W x 3.4? H x 2.7? D / 580 x 86 x 68 mm

Technology:
• LED

Mounting:
• Upright / Pendant

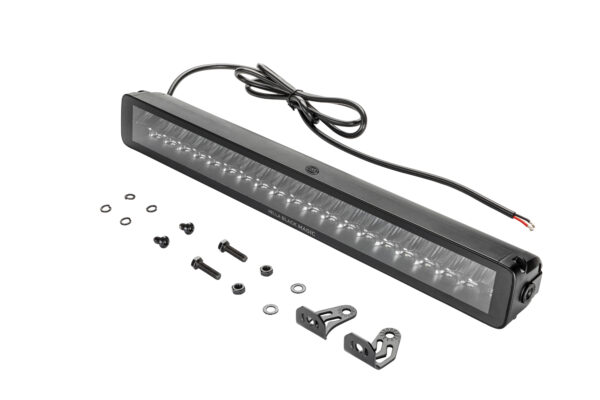

Single Lamp includes:
• (1) LED Light Bar with mounting hardware
• Mounting Instructions
