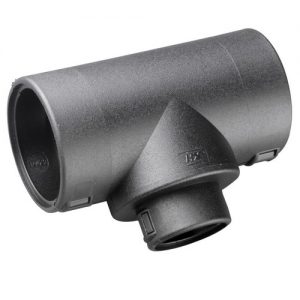

TempGuard Hinged T Piece
One-piece symmetrical 3 junction fittings allow a variety of conduit size variations. These fittings are designed to snap together over all types of Harnessflex slit and unslit conduit, maintaining maximum conduit bore. Full TempGuard system protection is achieved using these fittings with HTC conduit.
Temperature Range
Minimum | -40ºC |
Permanent Max | 160ºC |
Long term max (30,000 hrs) | 185ºC |
Short term max (3,000 hrs) | 200ºC |
Features
- One-piece external design for unrestricted bore and quick assembly with no tools.
- High pull-off strength – conduit corrugations sit tightly into joiner junctions.
- Conduit size labels – each junction indicates nominal conduit size to aid installation
- Integral retaining clips – retains conduit in position during assembly
- High Temperature Polyamide (Nylon) – Low Smoke & Halogen Free
- IP40 rated
- High UV resistance
- Self extinguishing, low smoke toxicity & halogen free
Conformity
- CE Mark to the low voltage directive
- RoHS Compliant to 2011/65/EU
- Conforms with end of life vehicle directive (ELV)EU200/53/EC
- UL94 V2 / UL94 RTI 150 (Elec)
